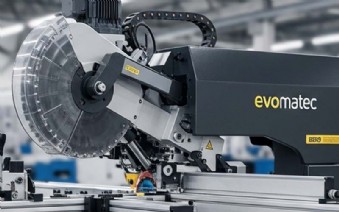

Aluminum Profile Saws: The Ultimate Guide to Precision, Efficiency, and Innovation

Aluminum profile saws are the backbone of the modern manufacturing and construction industries, enabling the precise cutting of aluminum profiles used in countless products and structures. From window frames and façade elements to complex assemblies in mechanical and automotive engineering, the ability to saw aluminum quickly, accurately, and with high repeatability is a decisive factor for quality, efficiency, and cost-effectiveness. This comprehensive article delves deep into the world of aluminum profile saws, illuminating all aspects of this essential machine technology. We will explore the technical fundamentals, diverse applications, historical development, and future trends to paint a complete picture that is of great value to both technical experts and interested newcomers.

Aluminum as a material has established itself in many industries due to its unique properties—low weight, high strength, corrosion resistance, and excellent formability. However, these very properties also place special demands on processing. An unclean cut, inaccurate angles, or a damaged surface can significantly impair the functionality and aesthetics of the final product. This is where specialized aluminum profile saws come into play. They are precisely tailored to the physical properties of aluminum and its alloys and, thanks to their design and equipment, guarantee first-class cutting results. In the following sections, we will decipher the fascinating technology behind these machines, explain their operation in detail, and show why they are indispensable in modern production.

The Basic Functionality of Aluminum Profile Saws

The heart of every aluminum profile saw is the interplay of the saw blade, drive unit, material feed, and clamping system. Each of these components is crucial for the cut quality. In essence, a rotating saw blade is guided at high speed through a firmly fixed aluminum profile to produce a clean and burr-free separating cut.

The Saw Blade: The Cutting Edge of Precision

Choosing the right saw blade is of fundamental importance for the cutting result. Saw blades for aluminum differ significantly from those for wood or steel.

Tooth Shape and Tooth Geometry

For aluminum, saw blades with a negative or neutral tooth rake and a trapezoidal-flat tooth (TF) geometry are typically used. The negative rake angle of the teeth prevents the saw blade from "pulling" itself into the soft material, which could lead to uncontrolled cuts and material deformation. Instead, the tooth scrapes the material away, which allows for a very controlled and clean cut. The trapezoidal-flat tooth arrangement, where a slightly higher trapezoidal tooth alternates with a lower flat tooth, ensures optimal chip distribution. The trapezoidal tooth performs a pre-cutting operation, while the flat tooth clears the remaining web. This reduces cutting forces and significantly improves surface finish.

Material and Coating

The saw blades themselves are made of high-quality carbide (HM). This material offers the necessary hardness and wear resistance to remain durable and precise even at high speeds and thermal loads. Often, the saw blades are additionally coated, for example with a PVD coating (Physical Vapour Deposition), to minimize friction, increase service life, and prevent aluminum chips from adhering (built-up edge formation).

Drive and Speed: Power Meets Control

The drive motor of an aluminum profile saw must provide enough power to keep the saw blade at a constant high speed, even with large profile cross-sections. The speeds for sawing aluminum are significantly higher than for steel but are generally lower than for woodworking. A typical cutting speed is in the range of 60 to 80 m/s. A speed that is too low can lead to material smearing, while a speed that is too high generates excessive heat, which can affect the material structure. Modern saws often have frequency-controlled drives that allow for stepless adjustment of the speed to the respective material and profile geometry.

The Clamping System: Secure Hold for Perfect Cuts

An absolutely secure and torsion-resistant hold of the workpiece during the sawing process is essential. Vibrations or shifting of the profile inevitably lead to inaccurate cuts, poor surfaces, and can even damage the saw blade. Aluminum profile saws therefore use highly developed pneumatic or hydraulic clamping systems.

• Horizontal Clamps: These fix the profile from the sides and press it against a fixed stop.

• Vertical Clamps: These press the profile from above onto the machine table and prevent it from lifting during the cut.

For complex or sensitive profiles, special form clamps are often used, which adapt exactly to the contour of the profile, thus ensuring a gentle yet extremely firm fixation. The quality and reliability of the clamping device are a direct measure of the precision of the entire machine.

Designs and Types of Aluminum Profile Saws

The market offers a variety of different saw types designed for specific requirements and production volumes. The basic distinction is often made according to the number of saw units and the direction of the saw blade movement.

Single-Head Saws: Flexibility for Custom and Small-Series Production

Single-head saws, as the name suggests, have a single saw unit. This unit is often pivotable and tiltable, which allows for miter cuts at various angles.

Miter Saws and Up-Cutting Saws

In the classic miter saw, the saw blade moves from top to bottom through the material. This is a widespread and intuitive design. With the up-cutting saw (also known as a "bottom-up saw"), the saw unit is hidden under the machine table and moves upwards through the profile for the cut. This design offers significant advantages in terms of work safety, as the saw blade is completely enclosed when at rest. It also allows for better chip extraction and often a more compact machine design.

Advantages and Disadvantages of Single-Head Saws

Advantages:

• High Flexibility: Ideal for changing cutting angles and complex individual cuts.

• Smaller Footprint: More compact design compared to double miter saws.

• Lower Investment Costs: Usually cheaper to purchase.

Disadvantages:

• Lower Throughput: Each cut must be performed individually. Adjusting for length cuts is time-consuming.

• Potentially Lower Accuracy on Length Cuts: Accuracy depends heavily on the precision of the manual or semi-automatic length stop.

Double Miter Saws: Efficiency for Series Production

Double miter saws are the workhorses in series production, especially in the window, door, and façade construction sectors. They have two saw units, one of which is usually fixed, while the other is movable on a precision guide.

Functionality and Automation

The decisive advantage is that both ends of a profile can be sawn simultaneously or in immediate succession, often with different miter angles. Modern double miter saws are usually CNC-controlled. The operator enters the desired length and angles via a control console, and the movable saw head automatically moves to the exact position. This allows for extremely fast and repeatable cutting of large quantities. The units can often pivot inwards and outwards (e.g., from 90° to 45° or even 22.5°), which enables the production of standard and special angles without retooling.

Advantages and Disadvantages of Double Miter Saws

Advantages:

• Extremely High Throughput: Significantly faster processing of series orders.

• Highest Length Accuracy: Positioning via CNC axes guarantees maximum repeatability.

• Reduced Manual Effort: High degree of automation lowers personnel costs and error rates.

Disadvantages:

• Higher Investment Costs: Significantly more expensive to purchase.

• Larger Footprint: Require more installation space due to their length.

• Less Flexibility for Single Pieces: Setting up for a single, complex cut can be more cumbersome than with a single-head saw.

Special Designs and Specialized Machines

In addition to the common types, there are a number of special machines for particular applications. These include, for example, saws with five or more controlled axes for the 3D cutting of complex geometries, as required in façade construction or the automotive industry. Automatic saws that fully automatically feed material from a magazine, cut it, and stack the finished parts also belong in this category. They are designed for mass production and enable unmanned manufacturing around the clock.

Application Areas and Industries: Where Aluminum Profile Saws are Indispensable

The applications for aluminum profile saws are as varied as the use of aluminum profiles themselves. Virtually every industry that processes aluminum benefits from this technology.

Window, Door, and Façade Construction

This is the classic and probably largest area of application. Window frames, front doors, conservatories, and complex mullion-transom facades consist of a multitude of precisely cut aluminum profiles. Double miter saws are particularly in demand here, capable of quickly and repeatedly producing large numbers of exact 45° miter cuts. The quality of the cut is crucial not only for the fit but also for the sealing and appearance of the final product.

Mechanical and Plant Engineering

In mechanical engineering, aluminum profiles are used for frames, protective enclosures, workstations, and automation components. The advantages lie in the low weight and high modularity of the profile systems. Flexible single-head saws are often used here, as the batch sizes are frequently smaller and the geometries more diverse. The precision of the cut is decisive for the stability and dimensional accuracy of the constructions.

Furniture Industry and Interior Design

Aluminum has also found a firm place in modern furniture design and high-quality interior design. Shelving systems, cabinet doors, table frames, or decorative strips are made from aluminum profiles. The aesthetic requirements here are particularly high. A clean, burr-free cut edge without any scratches is an absolute must. From our many years of experience in numerous customer projects, we know that a careful inspection of the machine settings is crucial to consistently ensure this quality while complying with all CE safety standards.

Automotive and Transportation Technology

In the automotive industry, rail vehicle construction, and aerospace, aluminum profiles are used to reduce weight. Frame structures, body parts, or interior components are made from high-strength aluminum alloys. The demands on accuracy and process reliability are extremely high here. Highly automated sawing systems are often used, integrated into complex production lines.

Exhibition Stand Construction and Advertising Technology

In exhibition stand construction and advertising technology, aluminum profiles are used for building trade show booths, displays, light boxes, and frame systems. The modularity and easy handling make aluminum the ideal material. The saws here must be flexible for fast and frequently changing orders.

The Historical Development: From Hand Saw to CNC Machine

The history of aluminum profile saws is closely linked to the development of aluminum as a material and industrialization.

The Beginnings in Metalworking

After the electrochemical process for aluminum production made industrial manufacturing possible at the end of the 19th century, the first profiles were initially processed using the means of the time. Simple hand saws or rudimentary, belt-driven metal saws were the first tools. The cuts were inaccurate, time-consuming, and required considerable rework.

Motorization and Specialization in the 20th Century

With the spread of the electric motor, the first motorized circular saws emerged. In the mid-20th century, specialization in certain materials began. It was recognized that aluminum, due to its softness and toughness, required different cutting speeds and saw blade geometries than steel. The first miter saws specifically designed for non-ferrous metals came onto the market. The development of better carbide saw blades was a decisive milestone that enabled higher cutting speeds and significantly better cut quality.

The Advent of Automation and CNC Technology

The great leap forward came in the 1970s and 1980s with the development of NC (Numerical Control) and later CNC (Computerized Numerical Control) technology. Suddenly, it was possible to enter lengths and angles digitally and position the machine precisely. This was the birth of the modern double miter saw. Productivity and accuracy increased exponentially. Pneumatic clamping systems, spray cooling systems, and safety guards became standard.

Industry 4.0: The Networked Saw of Today

Today, we are on the threshold of the next evolutionary stage. Modern aluminum profile saws are highly networked high-tech machines. They can be integrated into a higher-level production planning and control system (PPS/ERP). Cutting lists are no longer entered manually but are transferred digitally from the design software (CAD). The machine automatically optimizes the cut to minimize waste (bar optimization). Sensors monitor the condition of the saw blade and report when a change is necessary. Remote maintenance modules allow the manufacturer to perform diagnostics and install software updates without being on site.

Quality Features and Selection Criteria: What Matters When Buying

Investing in an aluminum profile saw is an important business decision. The right choice depends on many factors and should be carefully considered.

Machine Base and Stability

A solid, vibration-dampening machine frame made of cast steel or a heavy welded construction is the basic prerequisite for precise cuts. Any vibration during the sawing process is transferred to the saw blade and impairs the cut quality. Look for a torsion-resistant construction and high-quality, precision-ground guides for the movable units.

Precision of Angle and Length Adjustment

The accuracy of the machine is demonstrated by the repeatability of angle and length settings. For CNC machines, high-quality servo drives, precise measuring systems (e.g., glass scales), and backlash-free gears are crucial. The mechanical stability of the pivot and tilt joints must be guaranteed even after thousands of adjustment cycles.

Spray Cooling System

Sawing aluminum generates frictional heat. This heat can lead to material deformation and the adhesion of chips to the saw blade. An effective spray cooling system is therefore essential. It sprays a minimal amount of a special cooling lubricant directly onto the saw blade and the cutting zone. This cools, reduces friction, and removes chips. Modern minimum quantity lubrication systems are very environmentally friendly and economical.

Safety Devices

Aluminum profile saws operate at high speeds and with considerable force. Comprehensive safety devices are therefore not only legally required but also essential for protecting operators. These include:

• Full Protective Cabin: Encloses the work area and protects against flying chips and noise.

• Two-Hand Control: Ensures that the operator's hands are outside the danger zone during the sawing stroke.

• Safety Interlocks: Prevent the opening of the protective hood during operation.

• Emergency Stop Switches: Allow the machine to be stopped immediately in case of danger.

Our extensive expertise from countless projects enables us to pay special attention during every inspection to the flawless functionality and CE conformity of all safety-relevant components, ensuring the highest level of protection for personnel.

Software and User-Friendliness

On CNC-controlled saws, the software is the brain of the machine. An intuitive, graphically supported user interface facilitates operation and reduces training time. Important software features include:

• Graphical Profile Display: Helps with correct input and avoids errors.

• Cutting List Management: Import of data from other programs (e.g., CSV, Excel, CAD).

• Bar Optimization: Calculates the best possible cutting plan to minimize material waste.

• Label Printer Connection: Prints a label for each cut part with relevant information (order number, dimensions, barcode) for further processing.

The Costs: Investment and Operation

The cost of an aluminum profile saw can vary greatly depending on the type, size, equipment, and degree of automation.

Acquisition Costs

• Simple manual miter saws: Start in the low four-digit Euro range.

• High-quality single-head miter saws: Typically range between €10,000 and €30,000.

• CNC-controlled double miter saws: The price spectrum here ranges from about €40,000 for entry-level models to over €150,000 for highly automated high-end systems with extensive additional equipment.

Operating Costs

In addition to the pure investment, the running costs must also be considered. These include:

• Energy Costs: The power consumption of the drive motors and the control system.

• Consumables: Costs for saw blades, cooling lubricants. A high-quality carbide saw blade can cost several hundred Euros but can be resharpened multiple times.

• Maintenance and Repair Costs: Regular maintenance is crucial for the longevity and precision of the machine.

• Personnel Costs: The costs for the machine operator.

The economic efficiency of a saw is ultimately measured by the cost per cut. A more expensive, automated saw can quickly pay for itself through higher throughput, lower personnel costs, and material savings from waste optimization.

Future Prospects: Smart Saws in the Connected Factory

The development of aluminum profile saws is far from over. The trends are clearly moving towards further automation, digitalization, and artificial intelligence.

Predictive Maintenance

Sensors in the machine will not only monitor the current state but, based on data analysis and AI algorithms, will be able to predict when a component (e.g., a bearing or the saw blade) is likely to fail. Maintenance work can thus be planned before an unplanned machine downtime occurs. This significantly increases the availability and productivity of the system.

Self-Optimizing Processes

The saw of the future will independently adapt its cutting parameters (speed, feed rate) to the respective profile. Camera systems could recognize the profile geometry, and sensors could measure the vibrations and forces occurring during the cut. The machine learns from this data and continuously optimizes the process to achieve the best possible cut quality at maximum speed and with minimal saw blade wear.

Integration of Robotics

The manual loading and unloading of saws will be increasingly taken over by robots. A robot arm can take raw profiles from a warehouse, feed them to the saw, remove the cut parts, deburr them if necessary, and prepare them for the next processing step, such as in a CNC machining center. This enables a fully autonomous manufacturing process.

Sustainability and Energy Efficiency

The pressure to produce in a resource-efficient manner will continue to increase. Future saws will be equipped with even more energy-efficient drives. Intelligent energy management systems will automatically put the machine into a standby mode during breaks. The development of biodegradable cooling lubricants and closed-loop systems for their reuse will also gain importance. Every safety inspection we conduct is based on profound practical experience, allowing us not only to confirm compliance with CE directives but also to identify potential for efficiency improvements with the utmost care for quality.

Conclusion: More Than Just a Saw

Aluminum profile saws are highly complex and precise machine tools that play a key role in countless value chains. They have evolved from simple cutting tools into intelligent, networked systems that significantly contribute to efficiency and quality in modern manufacturing. Choosing the right saw is a strategic decision that depends on the specific requirements of the production process, the desired degree of automation, and future business goals. Investing in modern sawing technology means investing in precision, speed, and ultimately, in the competitiveness of your company. Continuous development promises even more intelligent, autonomous, and sustainable solutions for the future, which will further revolutionize the way we work with the versatile material of aluminum.

Frequently Asked Questions (FAQ)

What is the best cooling method for sawing aluminum?

For sawing aluminum, minimum quantity lubrication is the preferred method. A special oil-air mixture is sprayed directly onto the saw blade. This effectively cools the cutting zone, reduces friction between the saw blade and the workpiece, prevents aluminum chips from adhering to the blade (built-up edge), and ensures clean chip removal. Compared to flood cooling, this method is much more environmentally friendly, uses less fluid, and leaves drier workpieces and chips.

Why is a negative rake angle important for an aluminum saw blade?

Aluminum is a relatively soft material. A saw blade with a positive rake angle, as is common in woodworking, would aggressively "pull" itself into the material. This can lead to an uncontrolled cut, deformation of the thin-walled profile, and a poor cut edge. A negative rake angle provides a scraping, controlled cutting action. The tooth cuts less aggressively and produces a finer chip. The result is a very clean, burr-free cut, higher dimensional accuracy, and significantly improved work safety.

What does bar optimization mean and why is it important?

Bar optimization is a software feature of modern, computer-controlled aluminum profile saws. The software receives a list of required cuts (cutting list) and automatically calculates how these parts can best be cut from the available raw profiles (usually 6 meters long) to minimize material waste (offcut). This is extremely important economically, as aluminum is an expensive raw material. Intelligent optimization can achieve material savings of 5% to 15% or more, which directly reduces production costs and increases resource efficiency.
