PRECISION CUTTING SAW ALUMINUM PROFILES

Precision Cutting Saw for Aluminum Profiles: The Ultimate Guide to Technology, Quality, and Efficiency

A state-of-the-art precision cutting saw for aluminum profiles is the technological heart and a decisive productivity factor in countless areas of industrial manufacturing and sophisticated craftsmanship. Whether in architectural facade construction, mechanical and plant engineering, the automotive industry, or furniture design – the ability to cut aluminum profiles with the highest accuracy, flawless cut quality, and at high speed is the fundamental prerequisite for manufacturing competitive and high-quality end products. This comprehensive guide delves deep into the world of these specialized machine tools. We will illuminate the complex technical foundations, analyze the functionality and different designs in detail, highlight their application areas in key industries, and take a look at the historical development as well as the forward-looking perspectives of this machine category. The goal is to create a profound understanding of the technology, processes, and economic aspects that is of high value to both technical experts and corporate decision-makers.

The material aluminum, with its unique properties – low weight with high stability, corrosion resistance, and excellent formability – has become indispensable in modern construction. However, these very material properties, especially the softness and toughness compared to steel, place high demands on the cutting process. An unsuitable process inevitably leads to dimensional inaccuracies, heavy burr formation, damaged surfaces, and high tool wear. A professional precision cutting saw is designed exactly for these challenges. Every component, from the massive machine frame to the tip of the saw tooth, is optimized to ensure a perfect, repeatable, and economical cut. In the following chapters, we will decipher the crucial features of such a machine and show you why an investment in the right cutting technology is a direct investment in the quality and efficiency of the entire manufacturing chain.

The Technological Foundations: What Defines a Precision Cutting Saw

A precise cut is not a coincidence but the result of the perfect interplay of a multitude of highly specialized components. To be able to assess the performance of a precision cutting saw for aluminum profiles, an understanding of its core technologies is essential.

The Machine Frame: The Foundation for Stability and Precision

The basis of every precision machine is a massive, vibration-damping, and torsion-resistant machine frame. During the sawing process, considerable forces and vibrations are generated, which must be absorbed by the frame instead of being transmitted to the saw blade and the workpiece. An unstable frame inevitably leads to chatter marks on the cut surface, dimensional inaccuracies, and rapid wear of the saw blade. High-quality machines therefore rely on heavyweight, stress-relieved steel welded constructions or machine beds made of mineral casting. These materials have excellent damping properties and ensure the necessary static and dynamic rigidity for a smooth and precise cut, even with large profile cross-sections.

The Saw Blade: The Decisive Interface with the Material

The saw blade is the actual cutting tool and has the greatest influence on the quality of the cut. Saw blades for aluminum differ fundamentally from those for wood or steel.

Tooth Geometry and Rake Angle

For aluminum profiles, only carbide-tipped (HM) saw blades with a special geometry are used. The trapezoidal-flat tooth (TF) has established itself as the industry standard. Here, a higher, narrower trapezoidal tooth (pre-cutter) alternates with a lower, wider flat tooth (finishing cutter). This division of the cut into two teeth reduces the cutting forces, improves smooth running, and leads to an excellent surface finish.

Even more crucial is the negative rake angle. While a positive angle would aggressively "pull" into the material, which would lead to uncontrolled cuts and material tear-outs in soft aluminum, the negative angle ensures a scraping, controlled cutting action. The tooth shaves the chip off cleanly instead of tearing it. This is the key to an absolutely burr-free cut and to avoiding deformations in thin-walled profiles.

Cutting Material, Coating, and Tooth Pitch

The cutting edges are made of fine-grain carbide, which provides the necessary hardness and wear resistance for long service lives. To further reduce friction in the cutting channel and prevent the adhesion of aluminum chips (built-up edge), many high-quality saw blades are provided with special PVD coatings (Physical Vapour Deposition). These extremely hard and low-friction layers increase the service life and allow for higher cutting speeds. The tooth pitch (the distance between the teeth) is adapted to the wall thicknesses to be cut. A fine pitch is suitable for thin-walled profiles, a coarse pitch for solid material.

Drive Unit and Cutting Speed: The Balance of Power and Control

The drive motor must provide enough power and torque to keep the high cutting speed required for aluminum (typically 60-85 m/s) constant even at full engagement of the saw blade. A drop in speed during the cut immediately leads to a deterioration of the surface quality. Modern precision cutting saws, such as those developed by specialized manufacturers like Evomatec, rely on frequency-controlled drives. These allow for stepless adjustment of the speed to the respective aluminum alloy, wall thickness, and saw blade diameter. This optimization capability is crucial for achieving the best possible cutting result for every application with maximum tool life.

The Clamping System: Uncompromising Fixation as a Quality Guarantee

An absolutely secure and torsion-resistant hold of the workpiece is the basic prerequisite for precision. Even the slightest vibration or shifting of the profile during the sawing process inevitably leads to dimensional deviations and a poor cut surface. Professional machines therefore use powerful pneumatic or hydraulic clamping systems. Effective clamping must always come from two directions:

• Horizontal Clamping Elements: These press the profile sideways against a solid, plane-milled machine stop and secure the exact angular position.

• Vertical Clamping Elements: These press the profile firmly onto the machine table from above and prevent any lifting or fluttering during the cut.

For profiles with sensitive, surface-finished visible surfaces (anodized, powder-coated), clamping jaws with plastic inserts or special form clamps are essential to prevent scratches and pressure marks.

Coolant Lubrication: A Must for Clean Cuts and Long Service Lives

Dry sawing of aluminum is unthinkable in a professional environment. The frictional heat generated during machining would immediately cause aluminum chips to weld onto the saw teeth, drastically deteriorating the cut quality and quickly destroying the saw blade. Minimum quantity lubrication (MQL) has become established as the state of the art. A special, high-performance lubricating medium is atomized with compressed air and sprayed as a fine aerosol specifically onto the cutting edges of the saw blade. This cools, lubricates, and ensures clean chip removal. In contrast to outdated flood cooling, MQL leaves almost dry workpieces and chips, is more environmentally friendly, and consumes less fluid.

Designs and Concepts: The Right Machine for Every Requirement

The market offers a wide range of saw concepts designed for different requirements, from flexible single-part production to fully automated mass production.

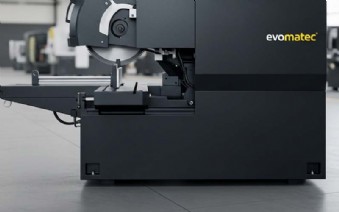

Single-Head Precision Cutting Saws: Maximum Flexibility

Single-head saws have a single saw unit and are the all-rounders for craftsmanship, prototype construction, and small series production. Their great strength lies in their flexibility for miter cuts.

Chop Saws and Miter Saws (Top-Down)

In the classic chop saw, the saw unit moves from top to bottom through the profile. This design is widespread and intuitive to operate. The saw unit is usually manually or motor-driven pivotable to realize miter cuts. The length is set via a manual or digital length stop, against which the profile is placed by hand.

Up-Cutting Saws (Bottom-Up)

In this design, the saw unit is safely concealed under the machine table when at rest. For the cutting process, it moves from bottom to top through the profile. This principle offers decisive advantages in terms of work safety, as the saw blade is completely enclosed when at rest. It also allows for optimal chip collection and often a better view of the scribe line.

Analysis: Pros and Cons of Single-Head Saws

Advantages:

• High Flexibility: Ideal for frequently changing angles and complex individual cuts.

• Smaller Footprint: Significantly more compact than double miter saws.

• Lower Investment Costs: Entry into professional aluminum processing is more cost-effective.

Disadvantages:

• Lower Throughput: Each cut must be made individually, and the material repositioned manually.

• Operator-Dependent Length Accuracy: The precision of the length cuts depends heavily on the quality of the stop system and the care of the operator.

Double Miter Precision Cutting Saws: Efficiency for Series Production

Double miter saws are the undisputed specialists in series production, especially in the window, door, and facade construction sectors.

Functionality and Degree of Automation

These machines have two saw units. One is fixed, while the other is moved by a motor on a high-precision guide. The decisive advantage: both ends of a profile can be cut in a single operation, often even with different miter angles.

Modern double miter saws are invariably CNC-controlled. The operator enters the desired length and angles via a touchscreen control panel, after which the movable saw head automatically moves to the exact position and the units pivot to the required angles. This allows for extremely high throughput with maximum repeat accuracy in the hundredth-of-a-millimeter range.

Analysis: Pros and Cons of Double Miter Saws

Advantages:

• Extremely High Output: Massive time savings when processing series orders.

• Highest Length and Angle Accuracy: CNC positioning eliminates human error.

• Reduced Operator Effort: High degree of automation minimizes manual activities.

Disadvantages:

• High Investment Costs: The complex technology is more capital-intensive.

• Large Footprint: They require a considerable amount of installation space due to their length.

• Less Flexibility for Single Parts: Setting up for a single special dimension can be more cumbersome than with a single-head saw.

Application Areas and Industries: Where Precision Makes the Difference

The application areas for precision cutting saws for aluminum profiles are as diverse as the use of aluminum profiles themselves.

Window, Door, and Facade Construction

This is the classic and, in terms of volume, largest market. Window frames, front door profiles, conservatory constructions, and mullion-transom facades consist of a multitude of profiles that must be cut to a miter. The exact adherence to angles and lengths is crucial here for the fit, tightness, and final appearance of the element.

Mechanical and Plant Engineering

In mechanical engineering, extruded aluminum profiles are used for machine frames, protective enclosures, transfer systems, and ergonomic workstations. The cuts must be exactly at right angles and true to size to ensure stable and precise constructions. Flexible single-head saws with robust roller conveyors and digital length measuring systems are often the most economical solution here.

Automotive and Rail Vehicle Industry

To reduce weight and increase passive safety, more and more components in modern vehicle construction are made from high-strength aluminum alloys. Space-frame structures, bumper beams, or battery trays for electric vehicles require precise cuts. The demands on accuracy and process reliability are extremely high here. Based on our in-depth wealth of experience from a variety of customer installations, we ensure that inspections are always carried out with maximum care regarding product quality and compliance with all safety-relevant CE standards, which is of utmost importance in this safety-critical industry.

Furniture Industry, Exhibition, and Shop Fitting

In high-quality furniture design, exhibition, and shop fitting, aluminum plays an important role as a design element. Frames for glass doors, shelving systems, counters, or displays are made from aluminum profiles. The aesthetic requirements for the visible cut edges are extremely high here. An absolutely burr-free, clean, and scratch-free cut surface is an absolute must.

The Evolution of the Cutting Saw: From Hand Saw to Industry 4.0

The development of the precision cutting saw reflects the technological progress of recent decades. From simple, manually guided saws and the first motorized chop saws to the revolution through CNC technology in the 1970s and 80s, which raised automation and precision to a new level. Today, we are in the age of Industry 4.0. Modern precision cutting saws from technology leaders like Evomatec are highly networked and intelligent means of production. They can communicate directly with the company's software (ERP) and the design department (CAD), receive cutting lists digitally, and automatically optimize the cut to minimize waste (cut optimization).

Profitability and Cost Analysis

The investment in a precision cutting saw must pay off. A holistic consideration of investment and operating costs is crucial.

Acquisition Costs (CAPEX)

The price range extends from a few thousand euros for a simple manual saw to six-figure sums for a large, fully automated sawing cell. The price directly reflects the degree of precision, automation, and productivity.

Operating Costs (OPEX) and Amortization

Operating costs include energy, compressed air, costs for saw blades, consumables such as cooling lubricant, and above all, personnel costs. A modern, CNC-controlled saw often pays for itself faster than expected, mainly through:

• Reduced Personnel Costs: Due to the high degree of automation, one operator can achieve a significantly higher output.

• Minimized Error Rate: Incorrect cuts due to manual measurement or adjustment errors are practically eliminated.

• Material Savings: The biggest lever lies in cut optimization. Savings of 5-15% of the expensive raw material aluminum are not uncommon and contribute massively to rapid amortization.

Safety Technology and CE Conformity

Professional saws must comply with strict European safety standards and bear a CE mark. This includes a complete protective cabin, interlocked access doors, two-hand safety controls, and emergency stop systems. The many years of experience gained from countless customer projects enables us to carry out every inspection with the utmost conscientiousness regarding quality aspects and the maintenance of CE-compliant safety.

Future Outlook: The Intelligent Precision Saw

Development continues towards even more intelligent, autonomous, and sustainable sawing technology. Predictive Maintenance will minimize unplanned downtime through sensor monitoring. The integration of robotics for loading and unloading will become standard. Our comprehensive practical experience from various customer projects is the guarantee that inspections of such complex, automated systems are always carried out with the strictest observance of quality specifications and complete CE-compliant machine safety. Sustainability through energy-efficient drives and the further optimization of material use will also gain importance.

Conclusion: A Key Technology for Success

The precision cutting saw for aluminum profiles is much more than just a machine for parting metal. It is a high-tech system solution and a crucial component for modern, competitive manufacturing. The choice of the right technology is a strategic decision that must be based on a careful analysis of one's own product portfolio, batch sizes, and future strategy. Whoever invests in modern, precise, and automated sawing technology invests directly in their own competitiveness and secures the technological basis for the challenges of the future in an increasingly digitized manufacturing world.

Frequently Asked Questions (FAQ)

Why is a negative saw blade rake angle crucial for aluminum?

Aluminum is a soft and tough material. A saw blade with a positive rake angle would "dig" into the material and pull it in uncontrollably, leading to tear-outs, deformations, and a safety risk. A negative rake angle, on the other hand, has a scraping, peeling effect. It cuts the material in a controlled manner and produces a fine chip, which results in an extremely clean, burr-free cut edge and significantly higher process safety.

What are the advantages of minimum quantity lubrication (MQL) over conventional flood cooling?

Minimum quantity lubrication sprays an oil-air mixture specifically onto the cutting edges. This has three main advantages: First, the consumption of lubricant is extremely low, which saves costs and protects the environment. Second, the cut profiles and chips remain almost dry, which facilitates further processing (e.g., welding, powder coating) and reduces cleaning costs. Third, the cooling and lubricating effect is often even better because the medium is applied directly at the point of action.

What exactly is cut optimization and what is the savings potential?

Cut optimization is a software function that analyzes a list of required cutting lengths and calculates the best possible plan to cut them from the available long raw profiles (e.g., 6 meters) with the least possible material waste (offcut). Since aluminum is an expensive raw material, minimizing waste is an enormous economic factor. Depending on the part lengths and complexity of the jobs, material savings of 5% to over 15% can be achieved through professional optimization software, which often justifies the investment in a CNC saw on its own.
